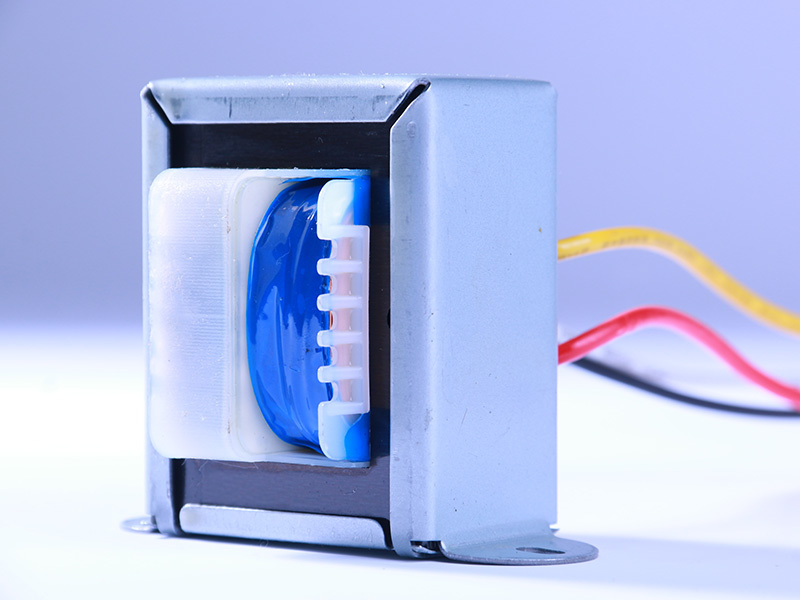

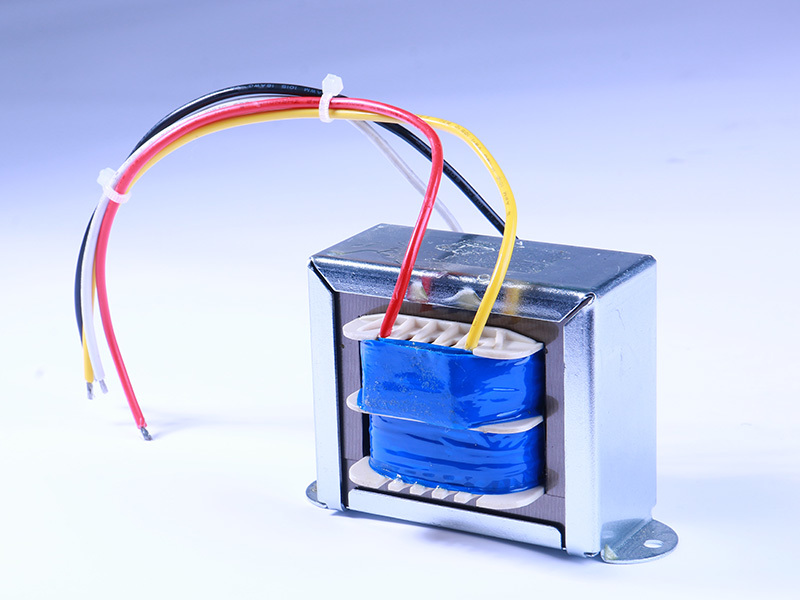

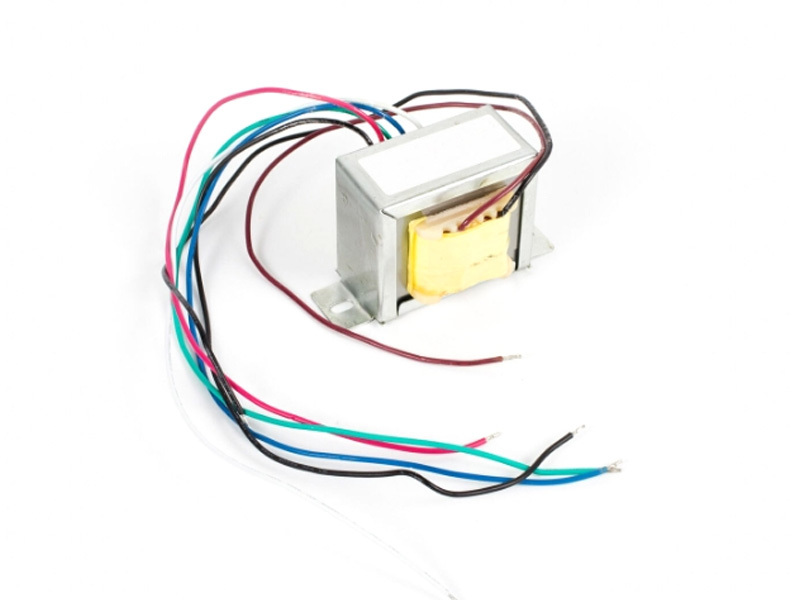

Introduction and Categorization
Qixing provides both standard and custom designs with following features：
Input Voltage: AC 100V/110V/115V/120V/220V/230V/240V;50/60Hz to be customized
Output Power: 1.0VA -1500VA to be customized
Products Advantages:
1.Low no-load loss
2.High Reliability
3.High Transmission Efficiency
4.Low-temperature Rise
5.Excellent Safety
6.UL Approved.
7.High output power
8.Rohs fully compliance
9.It can be customized according to the requirements of customers and provide total design solutions to customer
-
Power
Core model
Long
Width
High
After range
Hole spacing
Overall length
Weight
A(mm)
B(mm)
C(mm)
D(mm)
E(mm)
F(mm)
Kg
1W
EI 28*13
30
25
27
13
0.6-2.5
EI76
70-97
2W
EI 35*15
37
33
32
17
2.3-7.7
EI83
86-123
3W
EI 41*17
43
36
36
18
7-10
EI120
84-120
5W
EI 41*20
50
41
36
22
17-34
EI176
130-200
8W
EI 48*18
50
40
44
21
14-21
EI185.8
110-160
10W
EI 48*24
50
45
44
26
61
74
0.36
12W
EI 48*26
50
50
44
26
61
74
0.4
15W
EI 57*25
60
51
51
27
72
85
0.52
20W
EI 57*30
60
56
51
32
72
88
0.62
25W
EI 57*35
60
61
51
37
72
90
0.82
30W
EI 66*32
59
58
58
35
82
96
0.96
40W
EI 66*32
69
58
58
35
82
96
0.96
50W
EI 66*36
69
61
58
40
82
100
1.05
80W
EI 76*42
79
69
68
45
96*18.5
109
1.56
100W
EI 86*43
89
74
75
47
102*18.5
118
2.08
200W
EI 96*45
96
86
81
45
76*69
96
2.66
300W
EI 96*60
96
100
81
60
79*84
96
3.41

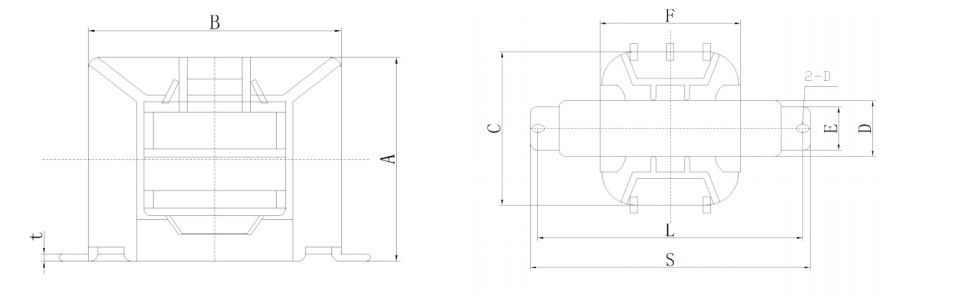

Name
Standard output
±1
±1
MAX
±1
±0.5
MAX
±1
±0.3
±1
t
Reference weight
Reference
Standard Output VA
A
B
C
D
E
F
L
d
S
Weight(kg)approx
L2L28-11
1
27
29.5
29
12.5
8
21
38
3.5*4.5
46
0.5
0.06
L2L35-10
1.5
31.5
36.5
33
11.5
8
26
45
3.5*4.5
53
0.5
0.09
L2L35-14
2
31.5
36.5
37
15.5
12
26
45
3.5*4.5
53
0.5
0.12
L2L41-16
4.5
36
43.5
38
18.5
14
30
52
4.5*6.5
60
0.8
0.15
L2L41-20
5.5
36
43.5
43
22.5
18
30
52
3.5*4.5
60
0.8
0.2
L2L41-24
7
36
43.5
49
26.5
22
30
52
3.5*4.5
60
0.8
0.25
L2L41-26
8
36
43.5
51
28.5
24
30
52
3.5*4.5
60
0.8
0.26
L2L48-18
8
43
50.5
42
20.5
16
33
59
4.5*6.5
69
0.8
0.3
L2L48-23
10.5
43
50.5
48
25.5
22
33
59
4.5*6.5
69
0.8
0.37
L2L48-25
12.5
43
50.5
51
27.5
22
33
59
4.5*6.5
69
0.8
0.4
L2L48-30
15.5
43
50.5
56
32.5
28
33
59
4.5*6.5
69
0.8
0.5
L2L54-18
10
48
56.5
45
20.5
16
37
69
4.5*6.5
80
0.8
0.41
L2L54-25
16
48
56.5
52
27.5
22
37
69
4.5*6.5
80
0.8
0.59
L2L57-25
18
50.5
59.5
53
27.5
24
39
72
4.5*6.5
83
0.8
0.65
L2L57-30
24
50.5
59.5
58
32.5
28
39
72
4.5*6.5
83
0.8
0.7
L2L57-35
30
50.5
59.5
62
37.5
33
39
72
4.5*6.5
83
0.8
0.8
L2L57-45
42
50.5
59.5
75
47.5
42
40
72
4.5*6.5
83
0.8
1.1
-
Application Industries:
Lighting, household appliances, automation control, industrial equipment, etc.
Industry insulation class: CLASS B
-
Testing Items:
No-load Test(No-load Current, No-load Voltage, No-load Loss)
Load Test (Load Voltage, Temperature-rise)
Inductive Voltage Test, DC Resistance Test, Safety Test
-
Operating environment:
1) Temp.: The ambient temperature can not over +40°C.
2) Altitude: Mounting location can not exceed the altitude of 2000m
3) Relative humidity: Maximum 90%
4) The site not attack by rain and snow
5) The medium which no explosion danger, no corroding metal, no electrical breakdown
