1.EE TRANSFORMER

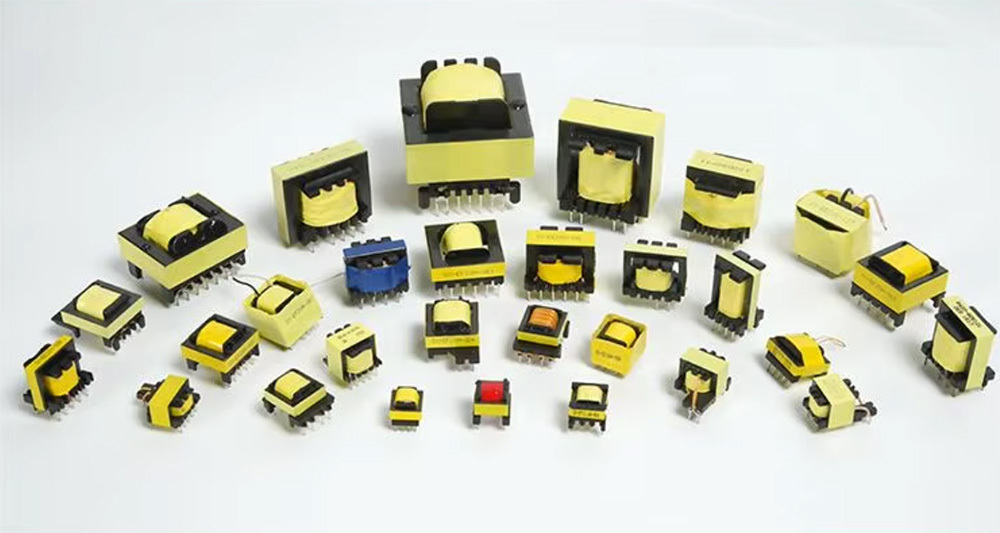

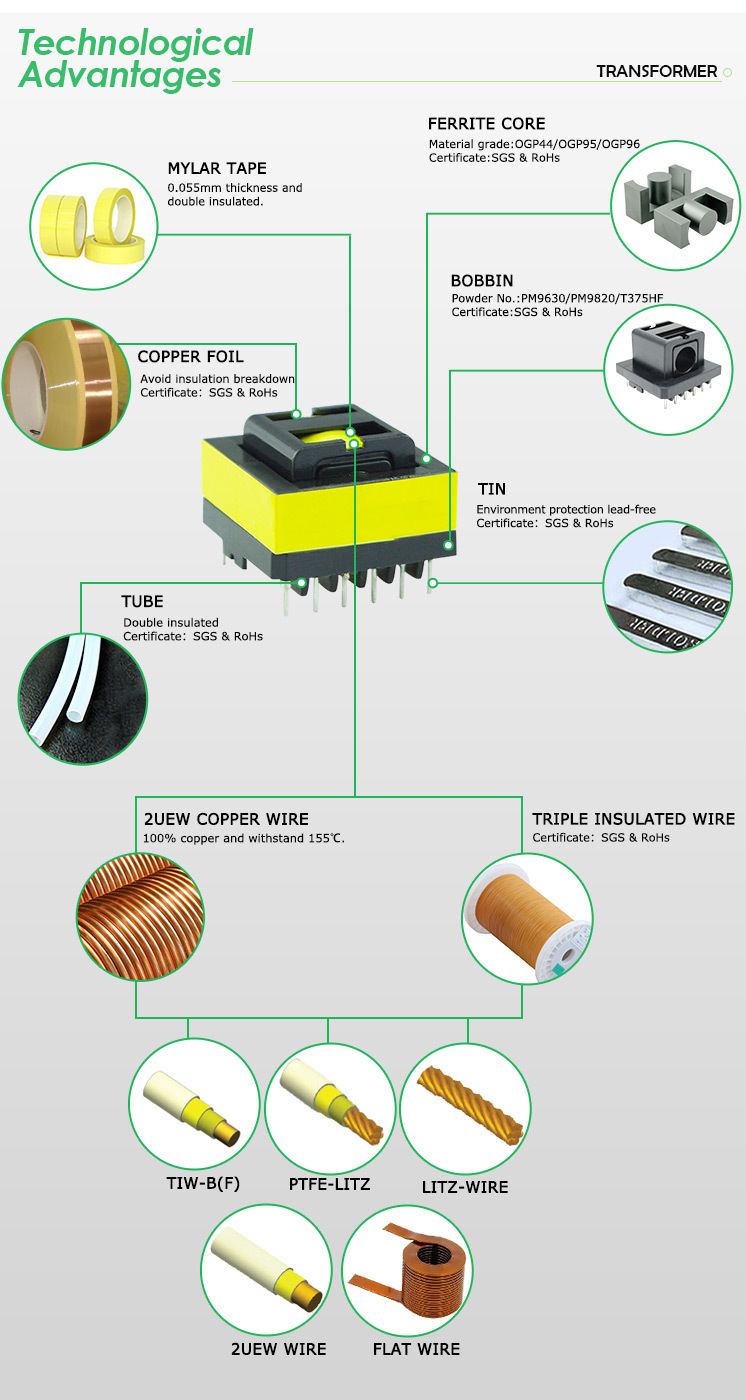

EE TYPE TRANSFORMER Application scenario: smart home appliances, industrial control, fire equipment, lamps and so on. More sizes can be obtained by contacting us directly.
Key Specifications/ Special Features:
1.Square high power high frequency type
2.Solar/switch-mode power supply
3.Low-loss/high saturation magnetic flux density ferrite
4.Compatible with multiple output switch-mode power supplies
5.High power output
6.Low profile
7.RoHS Directive-compliant

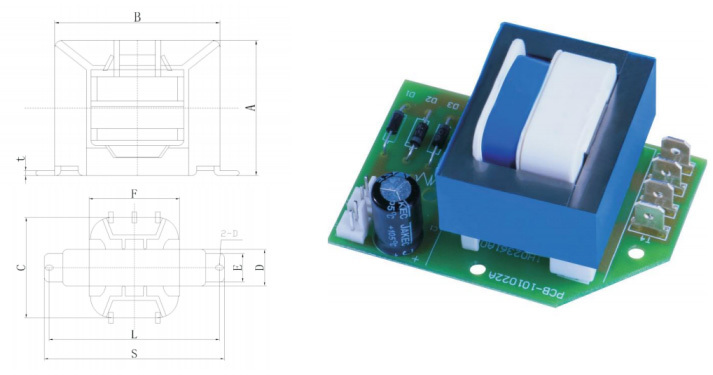

2. EI PIN Transformer
Ei Pin Transformer
Application Industries:
Application industries: all kinds of household appliances, communication equipmeindustrial equipment circuit control.
lnsulation level: CLASS B
3.Linear power transformer
Introduction：
Key Specifications/ Special Features:
The transformers utilize a dual cavity platform providing superior isolation and low capacitive coupling. Rigid pin construction for easier board insertion and higher reliability
Specifications:
• Power - 1.1 VA to 36 VA
• Dielectric Strength - 2500 Vrms Hipot
• Primaries - Single or dual primaries, 115 V or 115/230 V, 50/60 Hz
• Secondaries - Series or parallel
• Electrostatic Shield - Not necessary, split bobbin construction
• Insulation System - Class F, 155° C
-
1.EE TRANSFORMER
Material
T ℃
QX44
QXP47
QXP90
QXP95
QXP95B
QXP96
μi-（10KHZ）
25℃
2400±25%
2400±25%
1800±25%
3300±25%
3200±25%
3300±25%
BS-（H=1194A/m）
25℃
500
500
530
500
510
500
100℃
400
400
440
400
410
410
Core Loss Pcv（Kw/m³）-100KHZ,200mT
25℃
650
650
700
350
360
350
60℃
430
430
520
290
350
300
100℃
310
300
380
320
340
300
120℃
400
400
520
350
380
340
2. EI PIN Transformer
Type
power
(VA)
±1
±1
±1
±1
±0.3
MAX
±0.3
MAX
±1
P
pin
Reference Resources
Weight
A
B
C
E
I
J
I
J
L
Primary
intermediate
Primary intermediate
QX35-20
3.5
30
35.5
41.5
22.5
5
10
5
15
4
φ1
3
4
0.17
QX41-14
3.5
33.5
41.5
37
22.5
5
15
5
20
4
φ1
4
5
0.15
QX41-14
4.5
33.5
41.5
39
22.5
5
15
5
20
4
φ1
4
5
0.2
QX41-21
6
33.5
41.5
45
22.5
5
15
5
20
4
φ1
4
5
0.24
QX41-23
6.5
33.5
41.5
46.5
22.5
5
15
5
20
4
φ1
4
5
0.27
QX48-13
4.5
40.5
48.5
29.5
27.5
7.5
30
7.5
30
5
φ1.2
5
5
0.18
QX48-28
14.5
40.5
48.5
54
27.5
7.5
30
7.5
30
5
φ1.2
5
5
0.46
3.Linear power transformer
Specifications:
• Power - 1.1 VA to 36 VA
• Dielectric Strength - 2500 Vrms Hipot
• Primaries - Single or dual primaries, 115 V or 115/230 V, 50/60 Hz
• Secondaries - Series or parallel
• Electrostatic Shield - Not necessary, split bobbin construction
• Insulation System - Class F, 155° C
-
1.EE TRANSFORMER
EE TYPE TRANSFORMER Application scenario: smart home appliances, industrial control, fire equipment, lamps and so on. More sizes can be obtained by contacting us directly.
2. EI PIN Transformer
Ei Pin Transformer
Application Industries:
Application industries: all kinds of household appliances, communication equipmeindustrial equipment circuit control.
