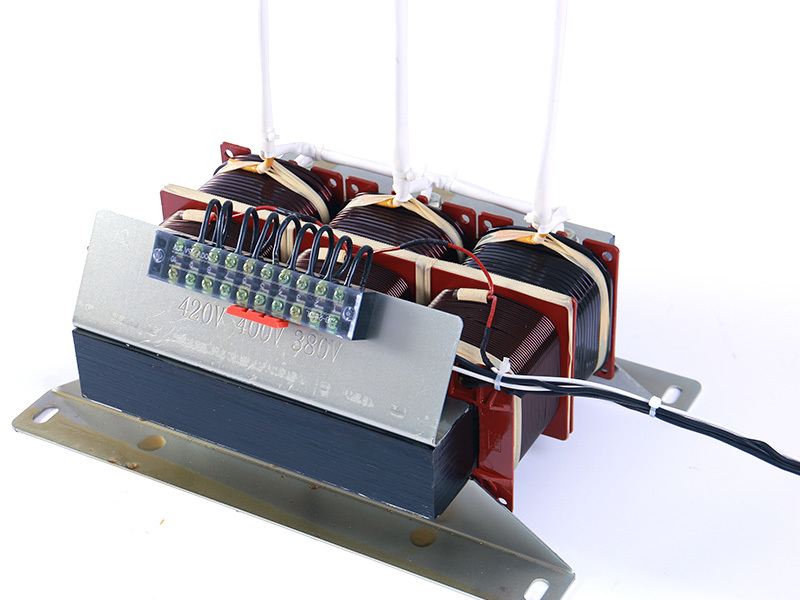

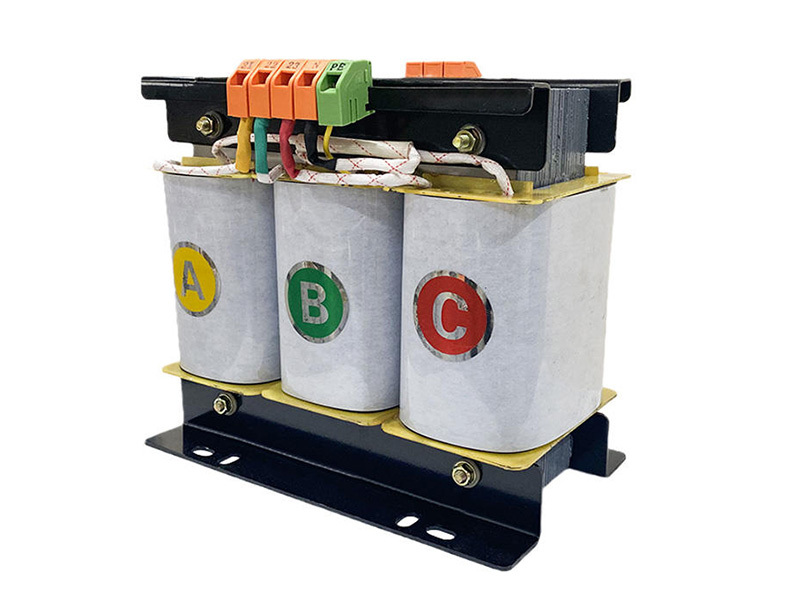

Three-phase transformer Series
Category:
Transformer
The three-phase dry-type transformer may be designed according to the practical application demand.
Get a Quote →- Products Advantages
- Technical Parameters
- Application Industries
- Testing Items
- Operating environment
-
Introduction:
The three-phase dry-type transformer may be designed according to the practical application demand.
The level of various input and output voltages of products, the number and place of connection modes and adjustment taps (generally +-5%), allocation of winding capacity, equipment of secondary single-phase windings, application of rectifying circuits, Having or having no cabinets may be determined through elaborate design and manufacture according to users requirements.
Key Specifications/ Special Features:
1.Connection winding: Dyn11
2.Operating frequency: 50Hz/60Hz
3.Product capacity: 10-400KW
4.Dialectic intensity: Core-winding 3000VAC/50Hz/5MA/1Min no arcing breakdown
5.Insulation resistance: 1000VDC
6.Resistance: ≥100MΩ
7.Transformer noise: less than 65DB
8.Protection grade: 1p00
9.Application altitude: 2000 meters below the current rating
10.Standard: IEC60076-11:2004/GB1094.11-2007/GB1094-1996/JBT56009-1998
-
Different Models:
Model
Product size（mm）
QX-100
120
88
120
QX-200
120
88
120
QX-300
180
110
150
QX-500
180
125
155
QX-750
180
125
155
QX-1KVA
240
145
205
QX-1.5KVA
240
145
205
QX-2KVA
240
155
205
QX-2.5KVA
240
170
225
QX-3KVA
300
165
260
QX-4KVA
300
180
260
QX-5KVA
300
190
260
QX-6KVA
300
220
285
QX-8KVA
360
210
315
QX-10KVA
360
220
335
QX-12KVA
360
235
335
QX-15KVA
360
250
335
QX-20KVA
420
245
390
QX-25KVA
480
245
440
QX-30KVA
480
255
440
QX-35KVA
480
255
440
QX-40KVA
480
255
440
QX-50KVA
600
290
510
QX-60KVA
600
325
510
QX-70KVA
600
350
510
QX-80KVA
700
320
620
QX-100KVA
730
320
650
QX-125KVA
760
330
680
QX-150KVA
760
350
700
QX-180KVA
800
330
700
QX-200KVA
830
350
730
QX-250KVA
1000
330
800
QX-300KVA
1000
350
850
