- Products Advantages
- Technical Parameters
- Application Industries
- Testing Items
- Operating environment
-

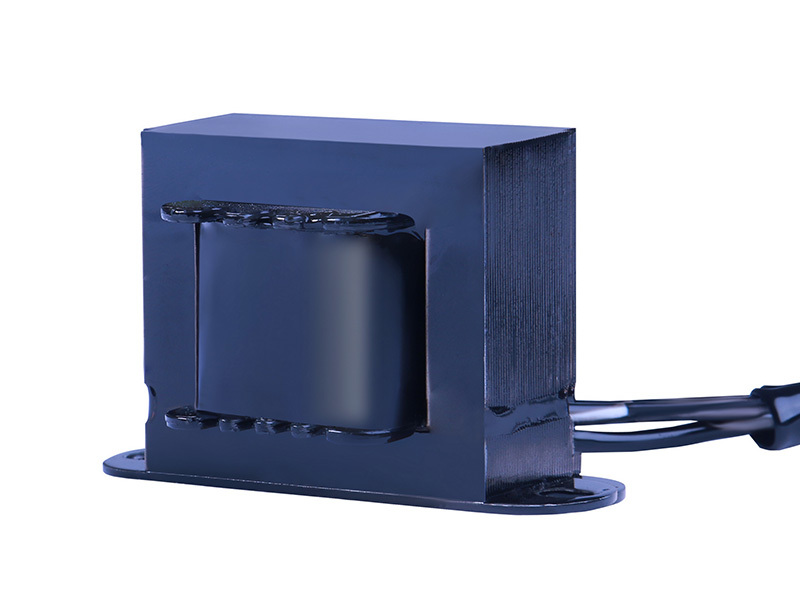

Products Advantages:
1.Low Profile and Weight;
2.High Reliability
3.Silence without noise
4.High Flux Density Core
5.High Isolation Measures
6.Soft Lead wire out
7.Frame Supported
8.Rohs fully compliance.
9.Custom Design Available: we can make orders as per your specific requirement or drawing
-
Different models：
Model
Rated output voltage(Vd.c.)
Output current(mA)
Power(VA)
EI-28 series
1.0V-36.0VAC
2mA-200mA
0.2VA-2.0VA
EI-35 series
1.0V-36.0VAC
2mA-500mA
0.5VA-4.0VA
EI-41 series
1.0V-36.0VAC
50mA -1000mA
1.0VA-8.0VA
EI-48 series
1.0V-36.0VAC
50mA -2000mA
6.0VA-20.0VA
EI-57 series
1.0V-36.0VAC
50mA -4000mA
10.VA-30.0VA
EI-66 series
1.0V-36.0VAC
50mA -4500mA
20.VA-50.0VA
EI-76 series
1.0V-36.0VAC
50mA -5000mA
30.0VA-50.0VA
EI-86 series
1.0V-36.0VAC
50mA -6000mA
50.VA-120.0VA
EI-96 series
1.0V-36.0VAC
50mA -7000mA
80.VA-150.0VA
EI-105 series
1.0V-36.0VAC
50mA -7500mA
100.VA-180.0VA
EI-114 series
1.0V-36.0VAC
50mA -8000mA
150.VA-300.0VA
-
Application:
1.Industrial application
2.Household Appliance.
3.New Energy
4.Communications
5.Other Industrial application
-
Testing Items:
No-load Test(No-load Current, No-load Voltage, No-load Loss)
Load Test (Load Voltage, Temperature-rise)
Inductive Voltage Test, DC Resistance Test, Safety Test
-
Operating environment:
1) Temp.: The ambient temperature can not over +40°C.
2) Altitude: Mounting location can not exceed the altitude of 2000m
3) Relative humidity: Maximum 90%
4) The site not attack by rain and snow
5) The medium which no explosion danger, no corroding metal, no electrical breakdown

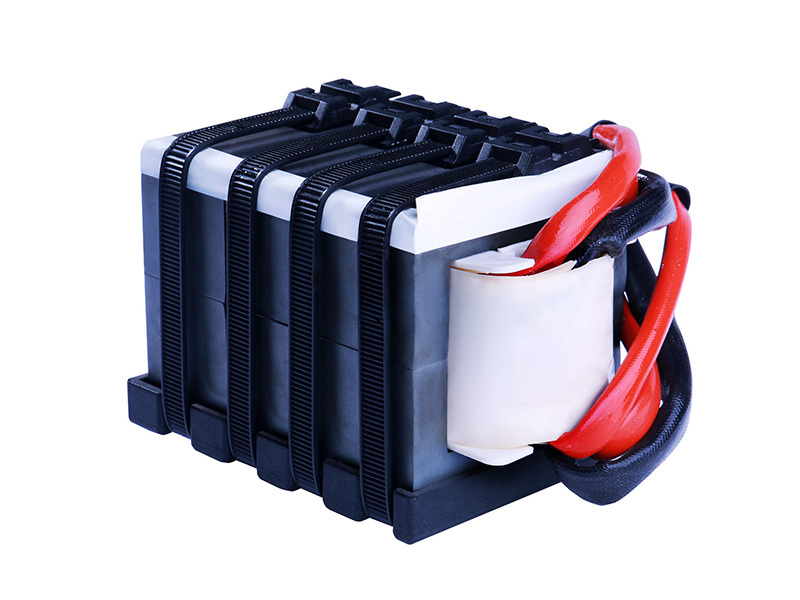

Related Products
