Introduction and Features:

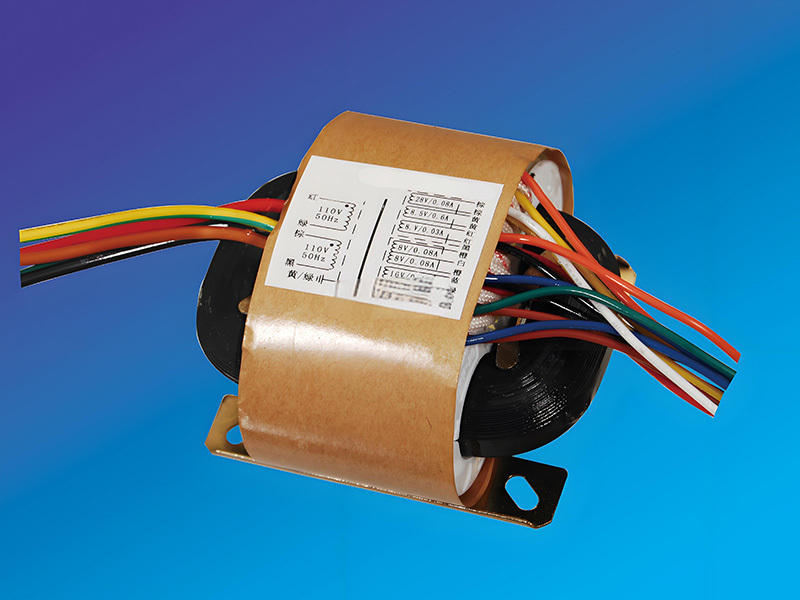

Universal Compatibility: This R-type transformer is designed to be compatible with various voltage requirements, allowing customers to customize it from 110v to 220v to suit their specific needs.
High-Quality Materials: The product features a copper wire material, ensuring durability and efficiency in power transmission, while the nylon bobbin material provides excellent insulation properties.
Customization Options: Users can specify the color of the bobbin, winding range (2.5~50,000), lead way (pin or electronic wire), and wire diameter (0.025~2.0) to meet their unique requirements.
Wide Range of Applications: This transformer can be used for various power applications, making it a versatile solution for different industries and projects.
Convenient Packaging: The product is carefully packaged in cartons for safe and secure shipping, ensuring a hassle-free experience for customers.
-
Technical Data
·Designed and tested according to EN61558.
·Up to 50% less weight than a similar conventional transformer
·Low magnetization currents and no- load losses
·Maximum ambient temperature ta=40℃/temperature class B(130℃)
Power(VA)
Type
A
B
C
D
E
F
G
KG
3-6
R5
59
50
27
35
45
35
φ4
0.2
6-10
R8
69
60
35
38
53
44
φ4
0.3
6-10
R8P
69
60
33
38
55
50
φ4
0.3
8-15
R10
75
63
37
42
55
45
φ4
0.4
15-28
R20
80
70
39
44
70
55
φ4
0.5
25-35
R26
83
72
42
45
70
55
φ4
0.6
30-45
R30
95
76
42
56
70
60
φ5
0.7
45-60
R35
97
79
46
57
70
60
φ5
0.9
35-55
R40
97
81
44
54
70
60
φ5
0.9
50-65
R50
98
88
48
54
75
65
φ5
1
65-90
R65
105
90
51
58
90
60
φ5
1.2
70-100
R80
122
91
52
75
90
70
φ5
1.4
90-130
R100
124
103
55
72
100
80
φ5
1.7
150-200
R160
136
112
63
82
100
85
φ5
2.6
200-300
R260
149
119
66
90
130
95
φ6
3.1
300-380
R320
159
130
70
97
135
95
φ8
3.8
380-620
R600
177
143
85
103
142
100
φ8
6.5
620-750
R700
178
143
85
103
142
100
φ8
6.8
750-1000
R800
194
171
95
108
162
122
φ10
8.2
1000-1200
R1000
214
172
100
127
180
140
φ10
10.5
1200-1500
R1500
228
190
95
126
180
140
φ10
13
-
Application Industries
Instruments and meters;Power automation; Medical equipment; Railway traffic equipment and other industries.
