Toroidal transformer Series
Category:
Transformer
Winding matches core perfectly, which makes the transformer more efficient.
Get a Quote →- Products Advantages
- Technical Parameters
- Application Industries
- Testing Items
- Operating environment
-

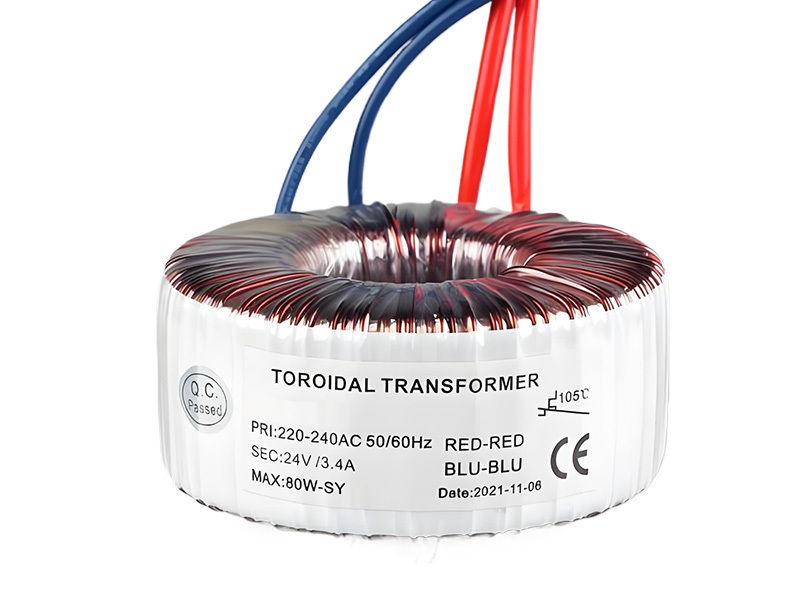

A Toroidal Transformer is an electric transformer with a toroidal core as the basic structure. It converts the input voltage into the required output voltage through windings. It is widely used in audio equipment, medical instruments, power systems, industrial control, communication equipment, and other occasions with high requirements for electromagnetic interference and efficiency. Its toroidal core is usually made of high-quality cold-rolled silicon steel sheets or nanocrystalline materials, with good magnetic conductivity and low eddy current loss characteristics, and is an important representative of modern high-performance transformers.
It adopts advanced winding technology and precision manufacturing technology, and has the significant advantages of small size, light weight, high efficiency, and low temperature rise. Because its toroidal structure can achieve flux closure, significantly reduce magnetic leakage and electromagnetic interference, it performs well in applications with high requirements for signal purity and power supply stability. At the same time, the toroidal structure also reduces vibration and noise, and runs more quietly and reliably, especially suitable for powering equipment in quiet environments.
It has good mechanical strength and heat resistance, and is made of high insulation grade materials to ensure stable operation under long-term high load or high temperature environments. The product complies with many international safety standards, is safe and reliable, and has flexible installation methods. It can be customized according to customer needs for different input and output voltages, power, and wiring methods to meet various personalized power solutions.
Choosing a Toroidal Transformer means you will get an energy-saving, durable, and low-interference power conversion core component. Qixing Electric is committed to providing customers with high-quality, reliable, and excellent performance product solutions, and is your ideal partner for power systems. Welcome to contact us for more product information and technical support.

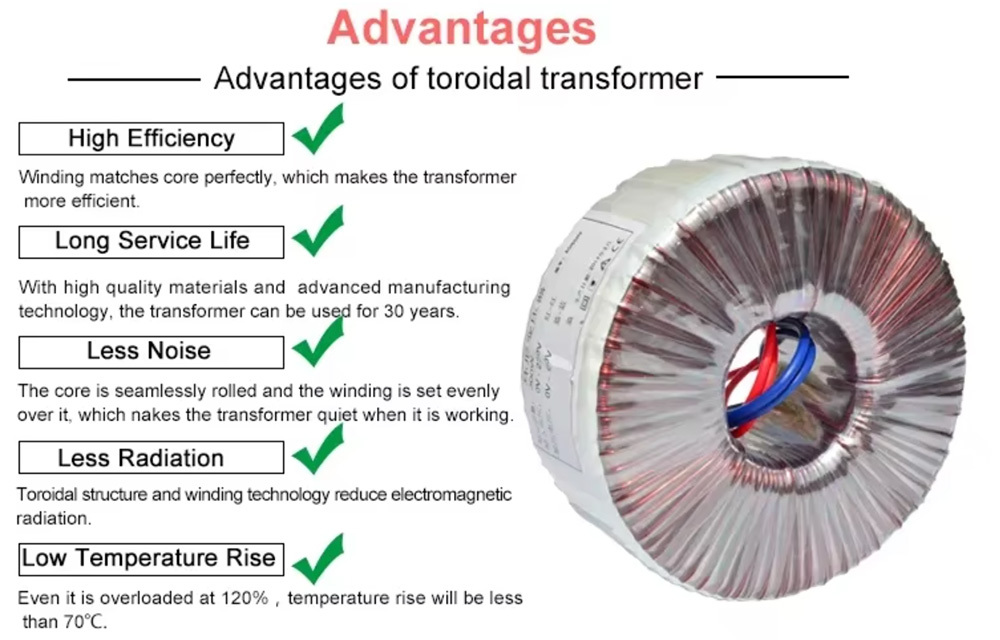

Advantages of toroidal transformers：
1. High Efficiency
Winding the match's core perfectly, which makes the transformer more efficient.
2. Long Service Life
With high-quality materials and advanced manufacturing technology, the transformer can be used for 30 years.
3. Less Noise
The core is seamlessly rolled, and the winding is set evenly over it, which makes the transformer quiet when it is working
4 .Less Radiation
Toroidal structure and winding technology reduce electromagnetic radiation.
5. Low Temperature Rise
Evenif it is overloaded at 120%, temperature rise will be less than 70℃.
-
Product Series：
Power(VA)
Approximate Diameter(mm)
Approximate Height(mm)
Approximate Weight(kg)
25
85
50
0.82
40
85
50
0.85
50
87
50
0.90
80
98
50
1.20
100
105
55
1.60
120
105
55
1.70
150
110
55
1.90
200
115
70
2.40
300
128
70
3.20
400
135
70
4.00
500
135
80
4.70
600
148
80
5.60
700
155
80
6.20
800
158
82
7.30
900
160
85
7.60
1000
165
90
8.50
1200
175
100
10.5
1500
185
105
12.5
1800
195
105
13.5
2000
205
105
15.5
2500
218
108
18.5
3000
228
110
21.5
4000
245
120
27.0
5000
256
128
31.0
6000
266
130
35.0
7000
280
135
39.0
8000
290
135
43.0
9000
300
140
48.0
10000
300
140
52.0
-
Application:
Medical equipment, Automatic control equipment, home appliances, audio amplifier, CCTV security, broadcasting system，solar power, wind power, telecommunications,etc
