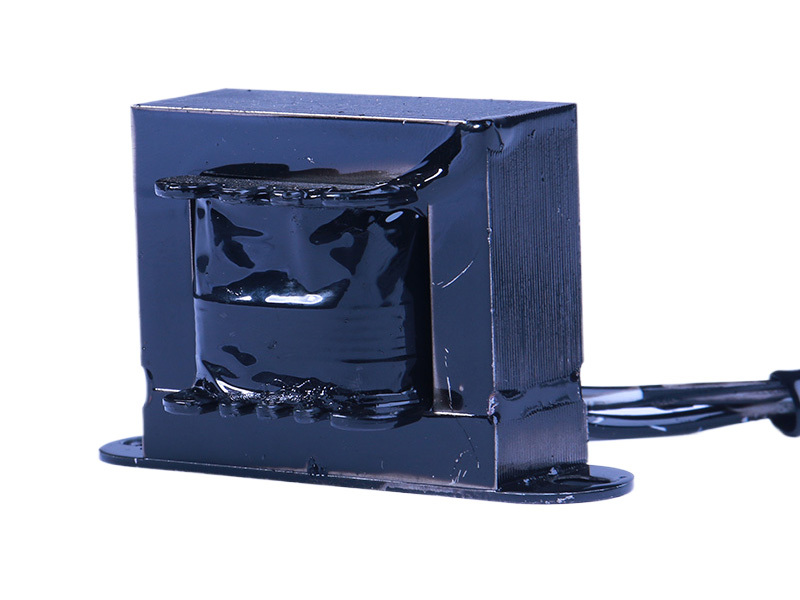

Household appliance filter reactor Series
Category:
Reactor
Machines, tools and the other electrical devices which are used in the industry, facility and the other structures cause harmonic pollution. Filtered compensation system must be used to minimize this pollution. Therefore, the reactors which are recommended to be used in the compensation systems are connected to the power capacitor in the system in serial.
Get a Quote →- Products Advantages
- Technical Parameters
- Application Industries
- Testing Items
- Operating environment
-
Introduction
Machines, tools and the other electrical devices which are used in the industry, facility and the other structures cause harmonic pollution. Filtered compensation system must be used to minimize this pollution. Therefore, the reactors which are recommended to be used in the compensation systems are connected to the power capacitor in the system in serial.
We have the ability to produce three-phase reactors in different ways. It can be designed in different ways as three phase, single phase harmonic reactors or reinforced harmonic filter reactors in line with the demands of our customers. In addition, connection types can be produced with terminals, busbars or lugs according to the demands of our customers. As a manufacturer, it is one of our mainly rules to design products according to the needs of our customers.
Benefits Of Reactor
• It protects the System against the risk of harmonic resonance.
• Reactors provides trouble-free operation and extend the life of the Capacitors, contactors or thyristors.
• Provides Energy saving.
Features：
1.Working Voltage: below 1000V 50HZ-60HZ
2.Insulation Grade: F/H grade
3.Reactance:1%/7%/14%
4. Electrical Strength: core-winding 3000V/50HZ/60S No flying arc breakdown.
5. Noise: less than 65dB
6. Temperature Protection:125 'C overheating open (normally closed type)
Performance Parameters:
1. Can be used for 400V-660V system.
2. Kinds of reactance rate: 5%, 7%, 14%
3. Rated insulation level 3kV/min.
4. The temperature rise limit of each part of the reactor: The core does not exceed 85K, and the temperature rise of the coil does not exceed 90K.
5. Reactor noise is not more than 45dB
6. The reactor can run for a long time at the frequency plus harmonic current less than 1.35 times the rated current.
7. Reactance linearity: The ratio of reactance at 1.8 times rated current to reactance at rated current is not less than 0.95.
8. The difference between any two-phase reactance of a three-phase reactor is not more than 3%.
9. Temperature class H (180℃) or more.
