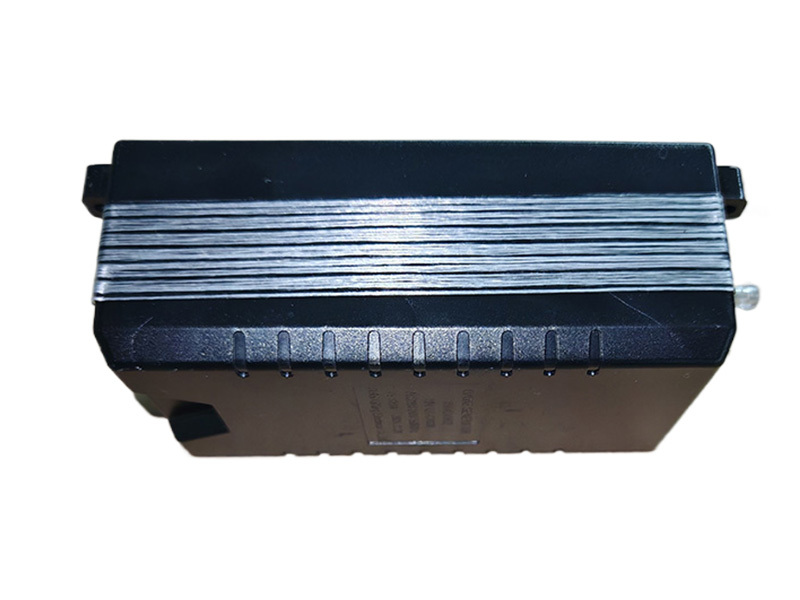

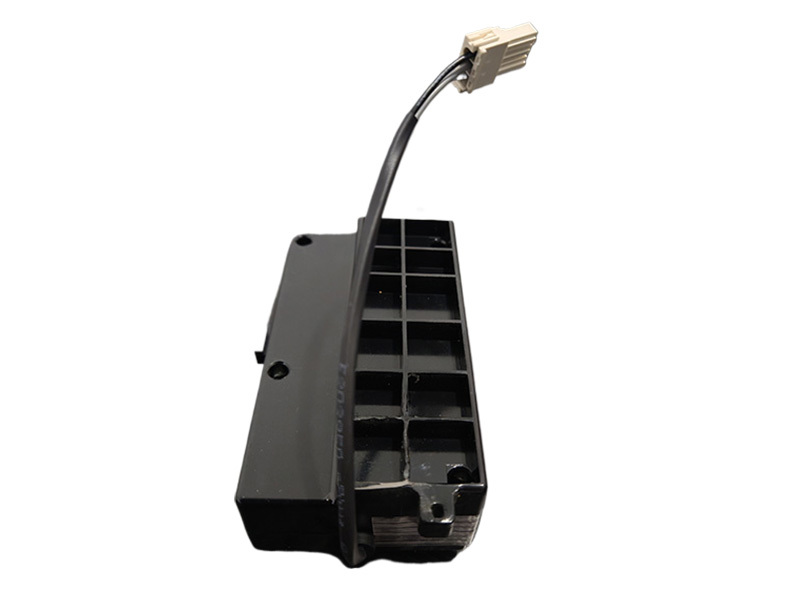

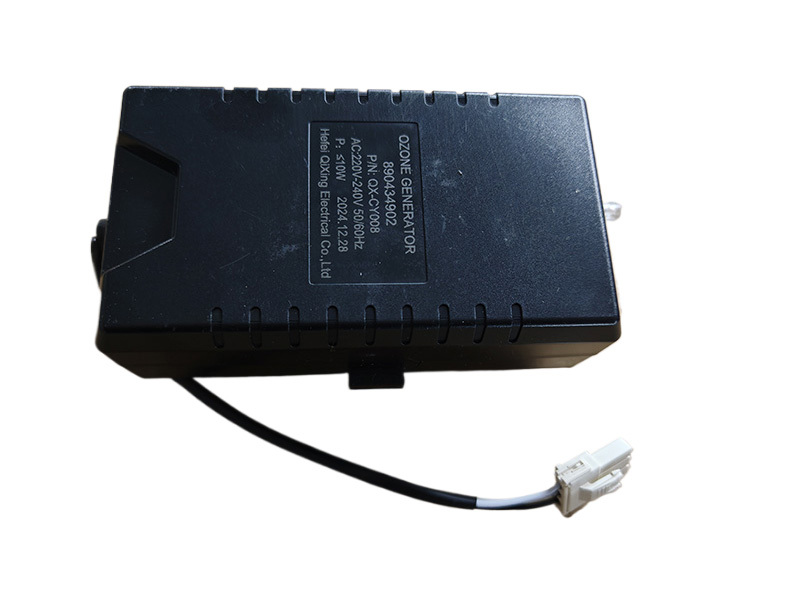

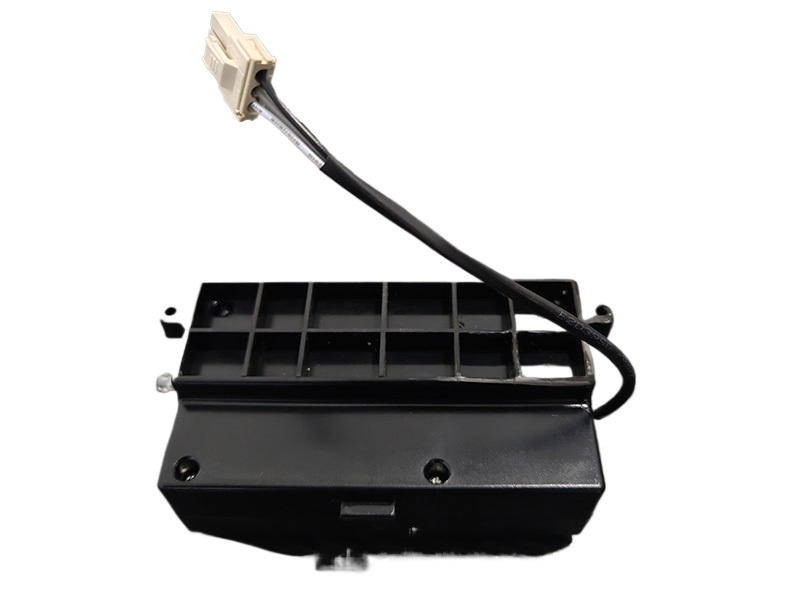

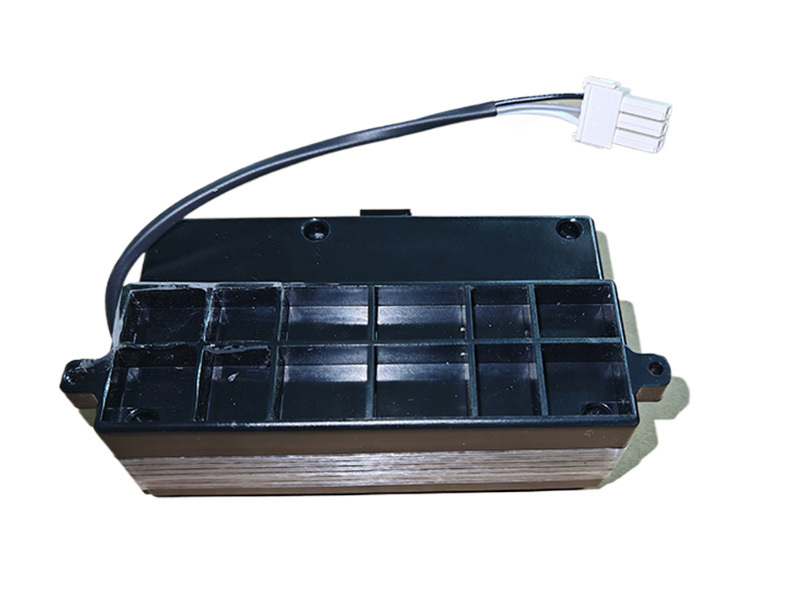

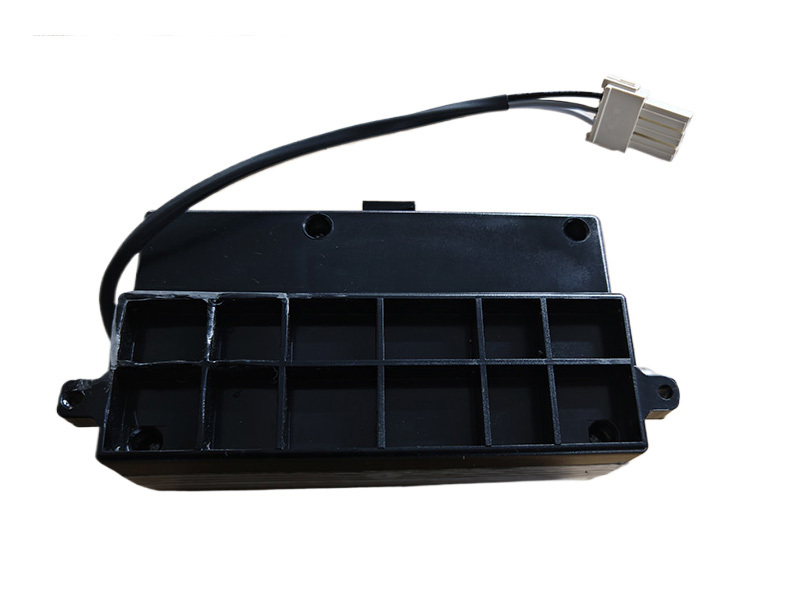

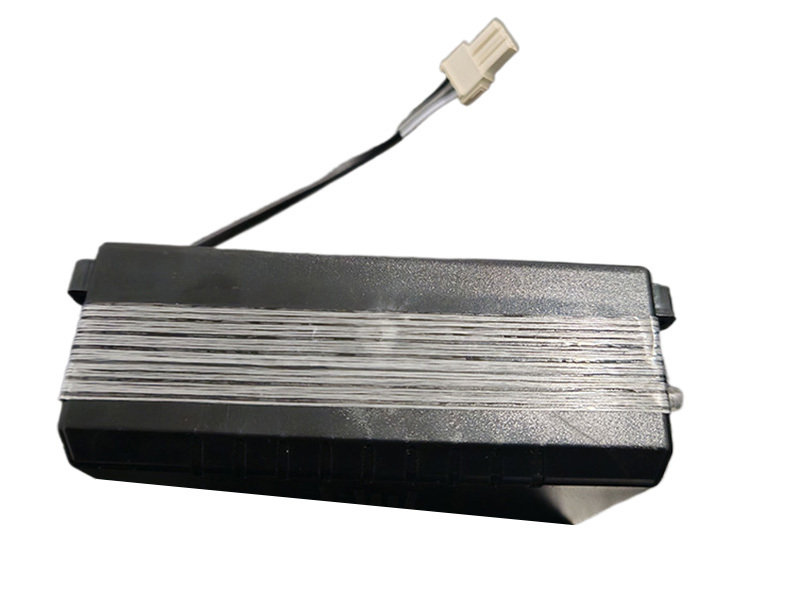

Ozone Generator Cell Series
Category:
Ozone generator
This ozone generator cells use ozone core discharge of invention patent, including the integration design of ozone generator tube, ozone driving circuit and air pump, they can provide stable and efficient ozone output, easy to install and maintain.
Get a Quote →- Products Advantages
- Technical Parameters
- Application Industries
- Testing Items
- Operating environment
-
This ozone generator cells use ozone core discharge of invention patent, including the integration design of ozone generator tube, ozone driving circuit and air pump, they can provide stable and efficient ozone output, easy to install and maintain.
Features:
. Integrated design three in one unit with driving circuit, ozone generator tube and air pump . Stable& efficient output
. Low noise
. Long working life
Benefits:
. High efficient broad-spectrum sterilization
. Good dispersion
. Without ozone residual and secondary pollution

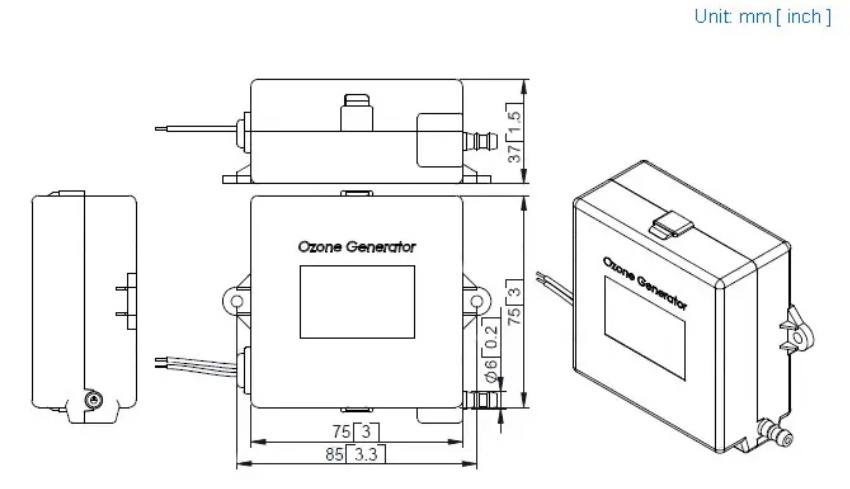

Size View:
-
Ozone Output:
50-100 mg/hr @ air
Pump Output:
1-2 L/min, >10 Kpa
Ozone Generating Method
Corona Discharge
Electrical:
AC220V-AC110V-DC24V-DC12V, 5W
Ozone Outlet Connection:
Ф 6mm pagoda joint
Case:
Plastic
Accessory:
Hose +Air stone（Optional）
Dimension(LxWxH):
3.0"*3.0"*1.5" (75 * 75 * 37 mm)
Installation Dimension:
3.3” (85 mm)
Net Weight:
-kg
-
Application:
. Washing machine, dishwasher, water machine, water purification machines, coin-operated sale water, fruit and vegetable detoxification machines, aquatic animals, the spa machine, surfing bathtub, slimmer.
. Medical apparatus and instruments, air purifier, disinfection cabinet, refrigerator, dryer, shoe ark, wardrobe, beauty equipment, oxygen machine, toilet, incubator, car.
